DIRECTION CONTROL VALVE
| Valve Size | 6 inch |
| Pressure | For Port T 100 Bar & for Port P, A, B, 350 Bar |
| Usage/Application | Industrial |
| Type | Spool |
| Media | Oil |
| Weight | 5 kg |
| Operating Temperature | NORMAL |
| Warranty | NO WARRANTY |
| Port Thread Size | 1/2″ BSP |
| Material | GRADED CAST |
| Country of Origin | Made in India |

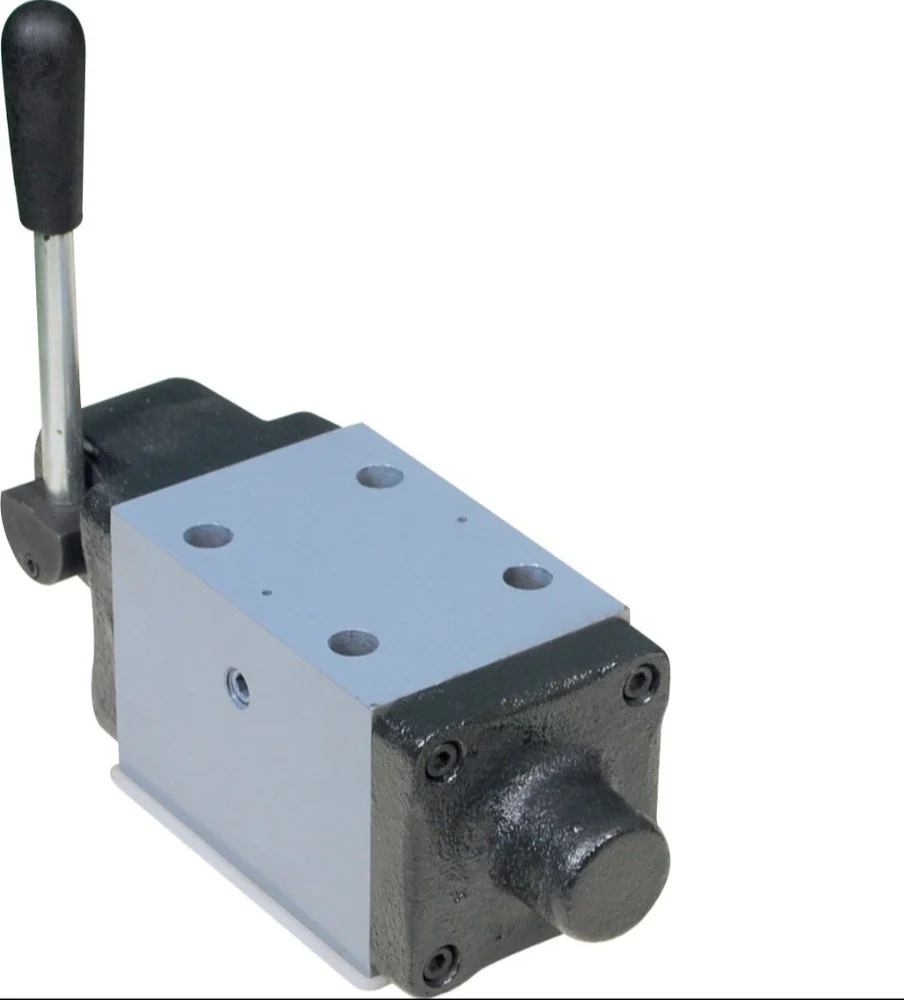

DIRECTION CONTROL VALVE (HAND LEVER OPERATED)
Completely encapsulated mechanism for protection against dirt. Five chamber design for better reduction in dynamic forces and longer valve life. Mounting styles Subplate body and thredead body. Available as spring centred, spring off-set or detented model. Operating head can be rotated by 90° x 4 around spool axis for flexibility in mounting. Valve mounting interface conforms to International and National Standards. Port configuration conforms to Factory Standards.
Additional Information:
- Production Capacity: 100
- Delivery Time: 7 DAYS
- Packaging Details: BOX PACKING
